Forged Brass with Copper Shading Coil and NEMA4X Electrical connection.
UL, CSA and ISO 9001 certified

  • Shape A DIN 43650 Connection encapsulated coils.
  • IP65 and NEMA4 Protection.
  • Core tube: 304 s.s.
  • Core spring: 302 s.s.
  • Core: 430 F s.s.

Electrical:

  • 110VAC – 50/60Hz
  • rated 0.9 AMPS at a Peak and 0.6AMPS Continuous
  • For indoor and outdoor use

Valve Sizes:

  • 3/4”
  • 1″
  • 1-1/4″
  • 1-1/2″
  • 2″

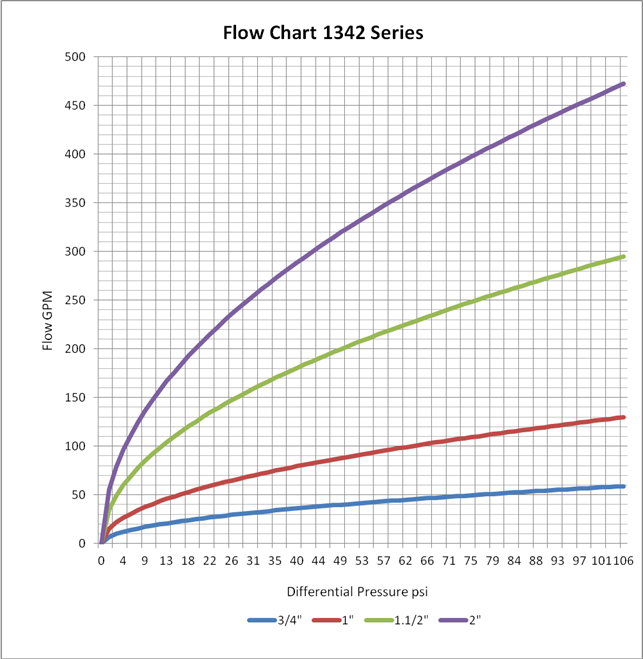

See the Chart below for flow rates:


Asco/Redhat Slow Closing Valve

(click image to enlarge)

PROUDLY MADE IN THE U.S.A. blank

All of our liquid level controls and liquid level sensors are assembled right here in the U.S.A.
where we monitor every step of the process.
